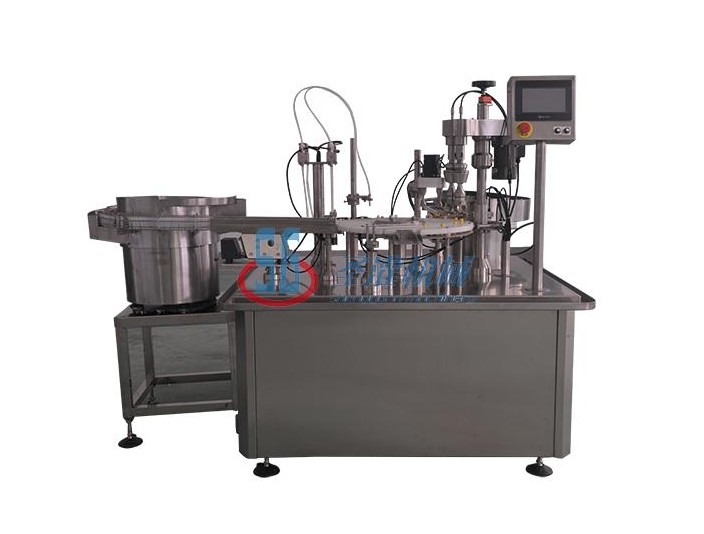

Micro liquid filling production line 0.1-1ml
This line is mainly applicable to the packaging process of liquid filling in pharmaceutical, oral liquid, beverage, health products, food, and other industries. This machine adopts automatic bottle feeding, disc positioning and filling, capping, and screw capping. The design is reasonable. It adopts imported Italian sea tyrants for quantitative filling, accurate measurement, and is especially suitable for the filling of liquids with 0.2ml-1ml bottles; needles 316L stainless steel material; working table is protected with stainless steel material, the whole machine meets GMP requirements. The machine transmission adopts mechanical transmission, the transmission is accurate and stable, there is no pollution of air source and there are errors in cooperation with various institutions. When working, it has low noise, low loss, stable operation and stable output. It is especially suitable for the production of medium and small batches of optional protective covers!
Filling capping machine main technical parameters
2.1 Production capacity: 25-35 bottles/minute 50 to 70 bottles/minute
2.2 production pass rate: not less than 98%
2.3 Power Supply: 220V, 50Hz
2.4 Total power: 1.5KW
2.5 Overall dimensions: 3000mm×2000mm×1700mm
2.6 Weight: 700kg
